Piping & Bottom Binding Layers to Master
OVERVIEW
This section explains how to build and duplicate garment graphics in a layered file while keeping the structure clean and consistent. The process focuses on creating accurate front and back color variations for piping, the collar, and the bottom binding. As the file is updated, binding is activated, dark and light color placements are replaced, and key elements are duplicated so each variation is built correctly.
To keep the file organized, layers such as bottom binding and piping are renamed, hidden, or repositioned as needed. The transcript also notes an important consistency rule: bottom binding remains at size 29 across all sizes. Layer colors serve as visual cues throughout the file: red for 2D elements, yellow for 3D elements, and green for 1D elements.
Refine the collar by adjusting thickness settings, typically within the 100 to 125 range, depending on the desired result. Once those updates are complete, the file is saved and the remaining components can be built using the same organized approach.
STEP-by-STep guide
1. Confirm the base version and identify the working file structure 0:00
- Open the correct file/version before making edits.
- Verify the version naming is correct so you are not working in an outdated file.
- Confirm the base artwork already contains some binding/piping structure that can be activated rather than rebuilt from scratch.

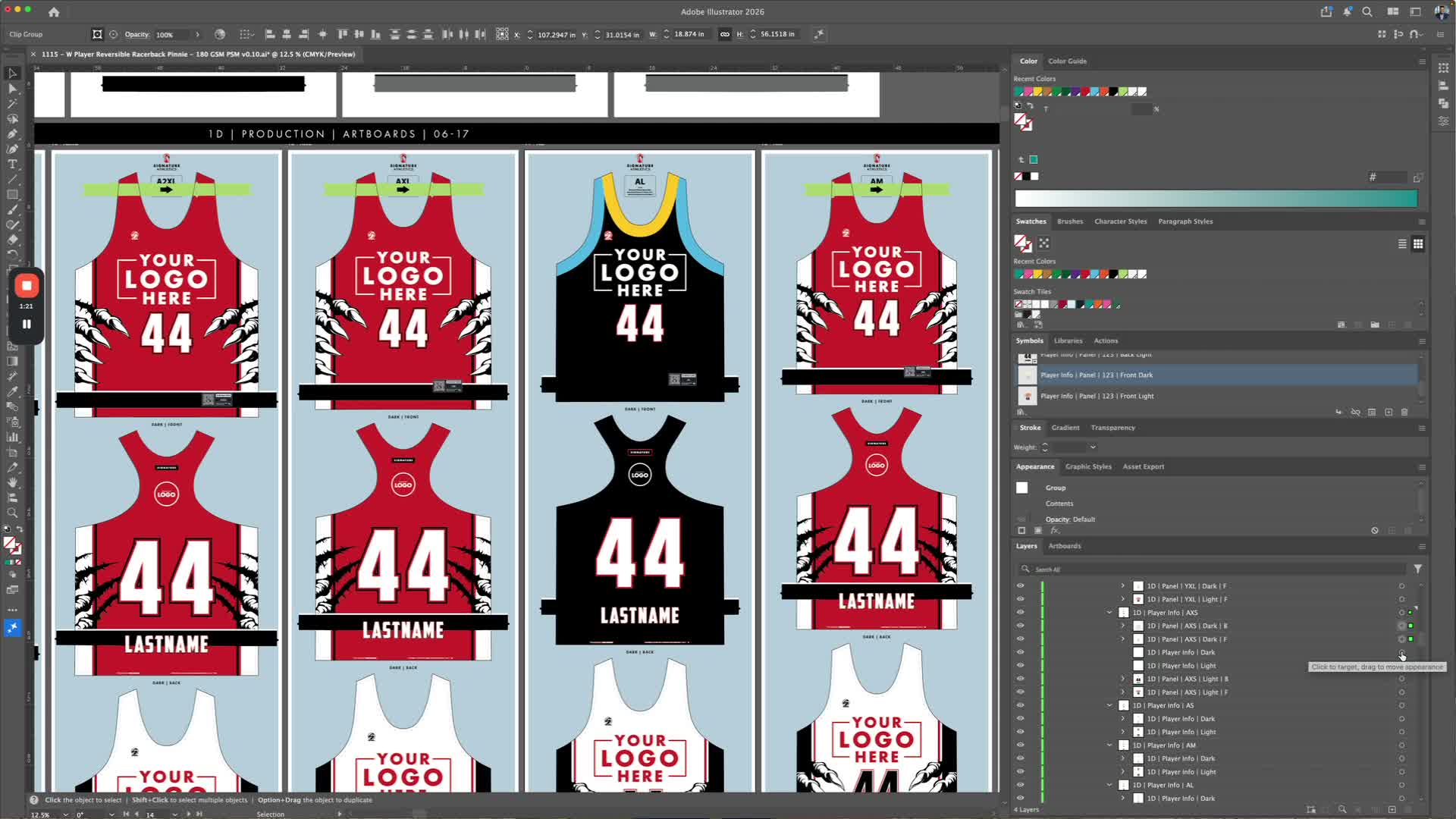

2. Separate artwork into base color groups and place them into the correct layer areas 0:24
- Take the inside/white/base artwork and move it into the correct destination layer.
- Sort pieces by color and side:
- dark pieces into the dark layer
- light pieces into the light layer
- front pieces into the front layer
- back pieces into the back layer
- Keep the structure organized so each component is easy to identify later.
3. Remove old or duplicate pieces after the correct version is placed 3:43
- Bring the correct piece to the top of the stack.
- Delete the old version once the replacement is in place.
- Repeat this cleanup for piping and any other duplicated elements so only the active artwork remains.

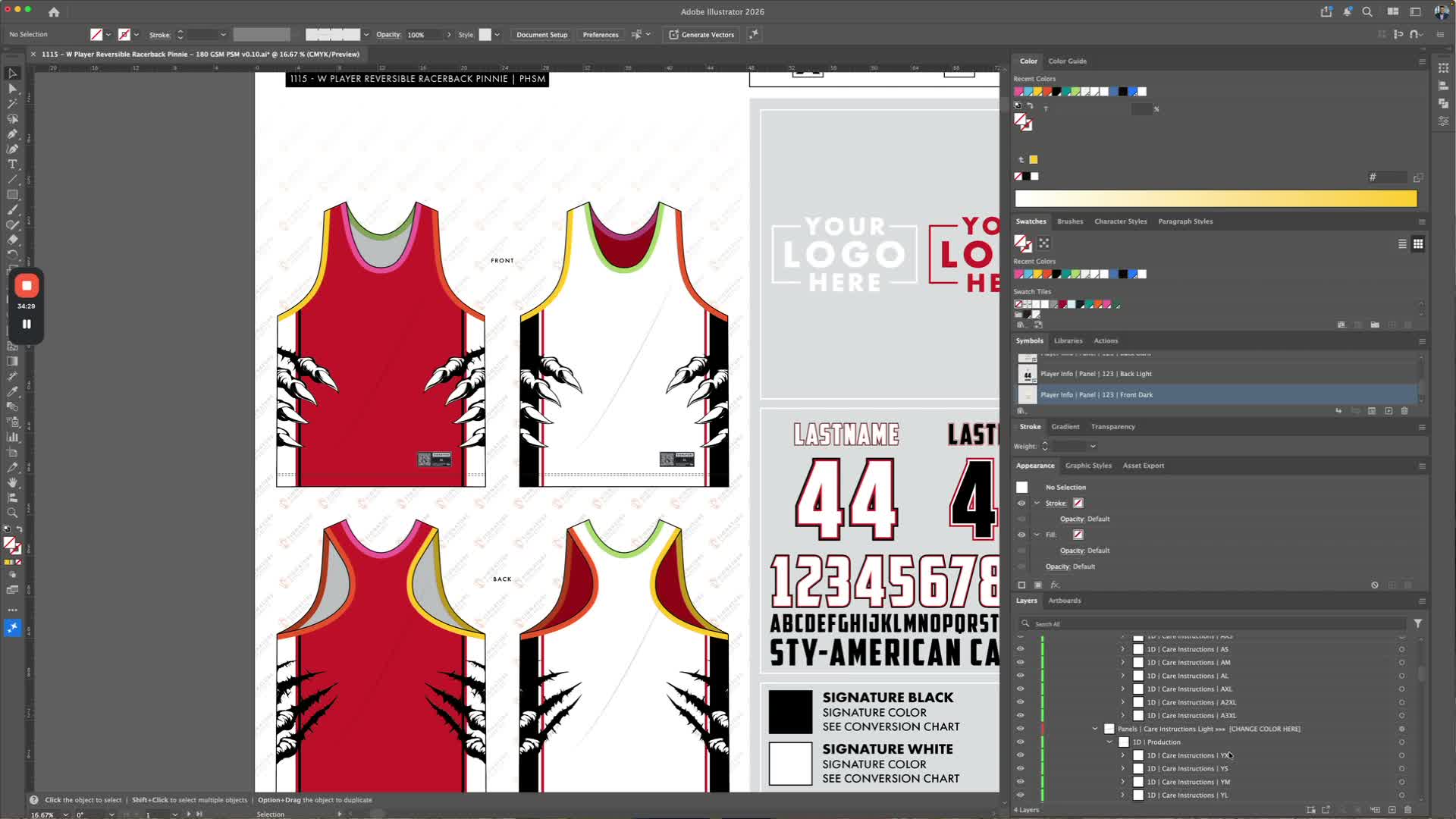

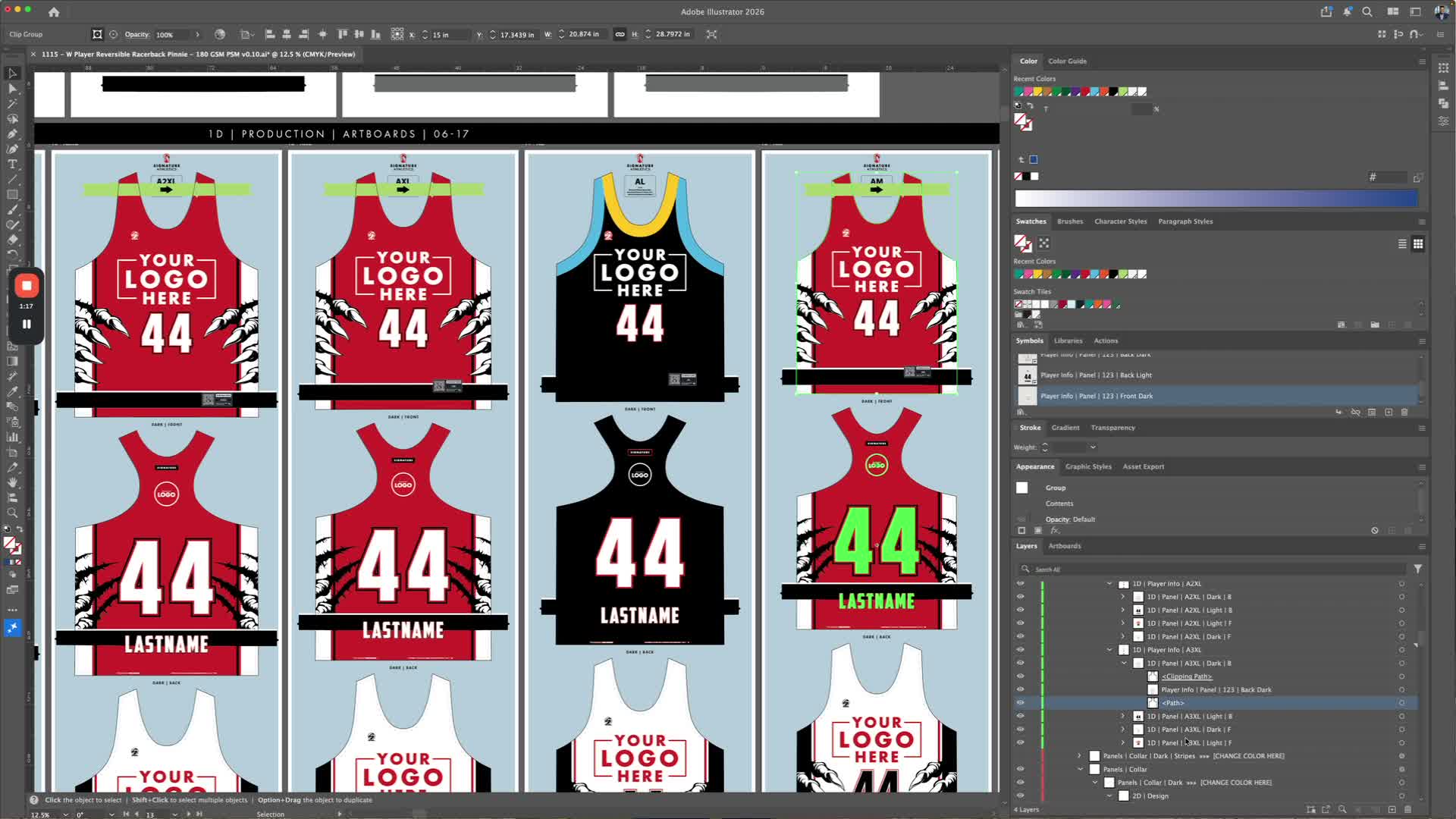

4. Build the piping structure and keep front/back separated 4:33
- Move the piping outside to the correct location.
- Keep dark and light versions separated when possible.
- Make sure front and back pieces are not merged incorrectly.
- If the piping is working visually, preserve that structure before moving on.
5. Clean up layer names and remove unnecessary copies 22:20
- Delete any layers or objects that are only copies and not needed.
- Remove anything labeled as copy/copyright if it is not part of the final production structure.
- Rename layers clearly so the file is easier to navigate.
- Hide non-working layers when they are complete so they are not accidentally edited.

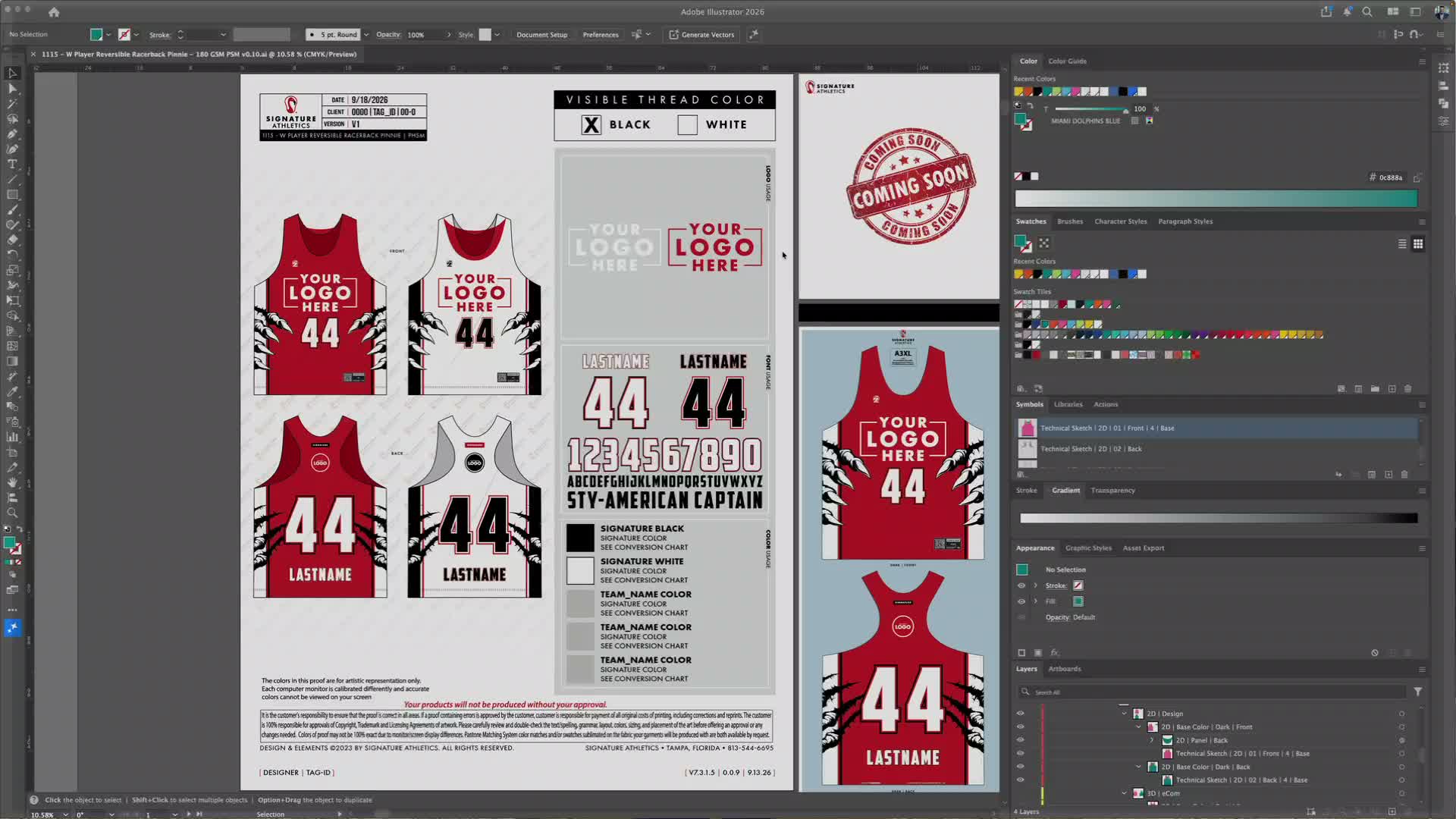

6. Set up the 2D/1D/3D layer logic before duplicating artwork 34:30
- Start with the 2D setup first because it establishes the structure for the rest of the file.
- Use the correct size base when possible; Adult Large is preferred if that is the standard working size.
- Organize the artwork so the darks, lights, and piping all live in the correct area before duplicating.

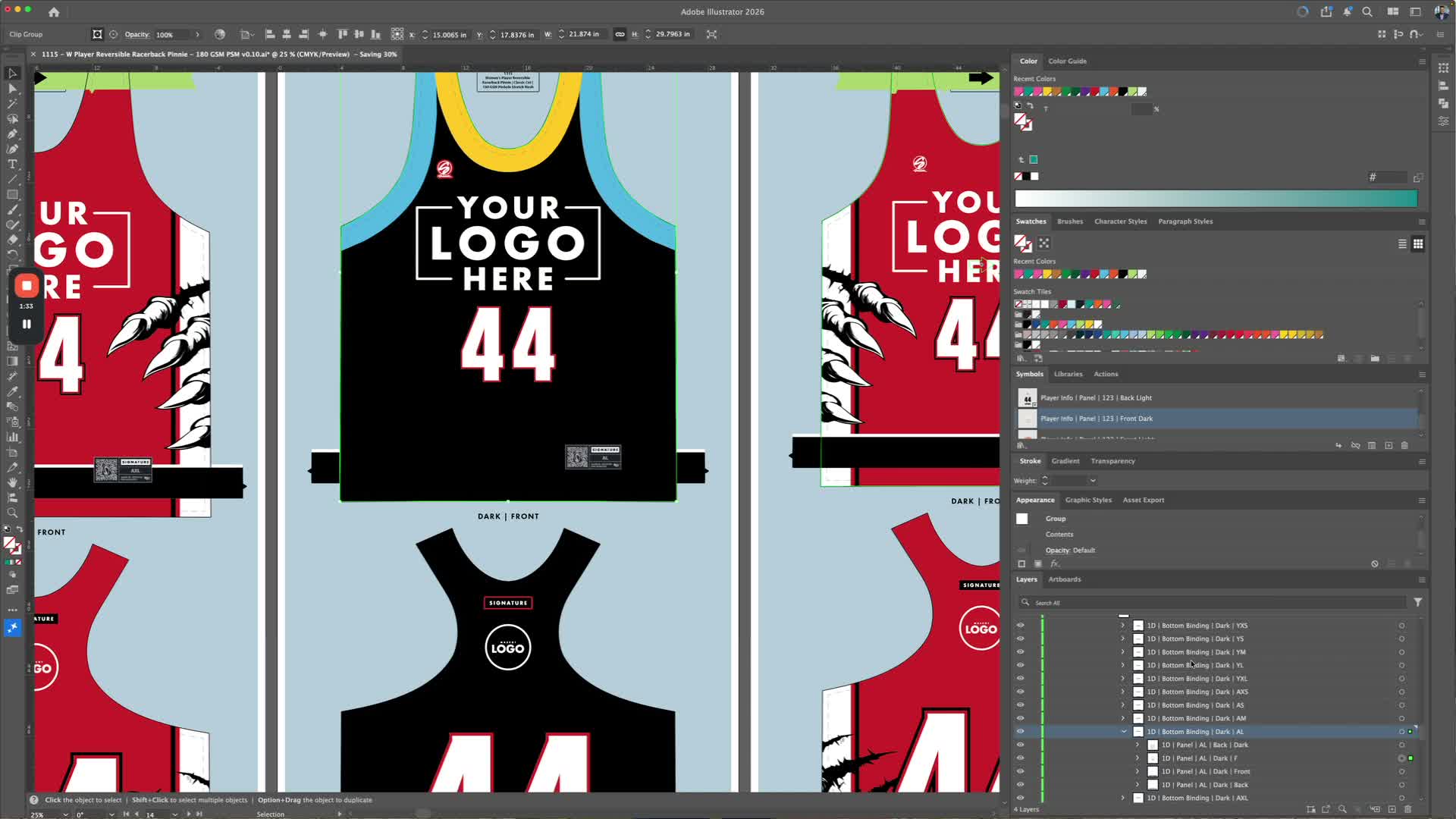

7. Duplicate the structure and assign color logic for dark and light versions 39:18
- Duplicate the dark version and create the light version from it.
- Replace dark labels with light labels using find-and-replace where appropriate.
- Change the light appearance to a contrasting color so it is easy to visually distinguish from the dark side.
- Keep the front/back and inside/outside relationships consistent.
8. Use consistent naming and hide completed layers to prevent accidental edits 41:19
- Once a layer is renamed correctly, do not keep editing it unless necessary.
- Hide or close completed layers to avoid changing the wrong artwork.
- Set up the layers first, then work through 1D, 2D, and 3D elements in order.

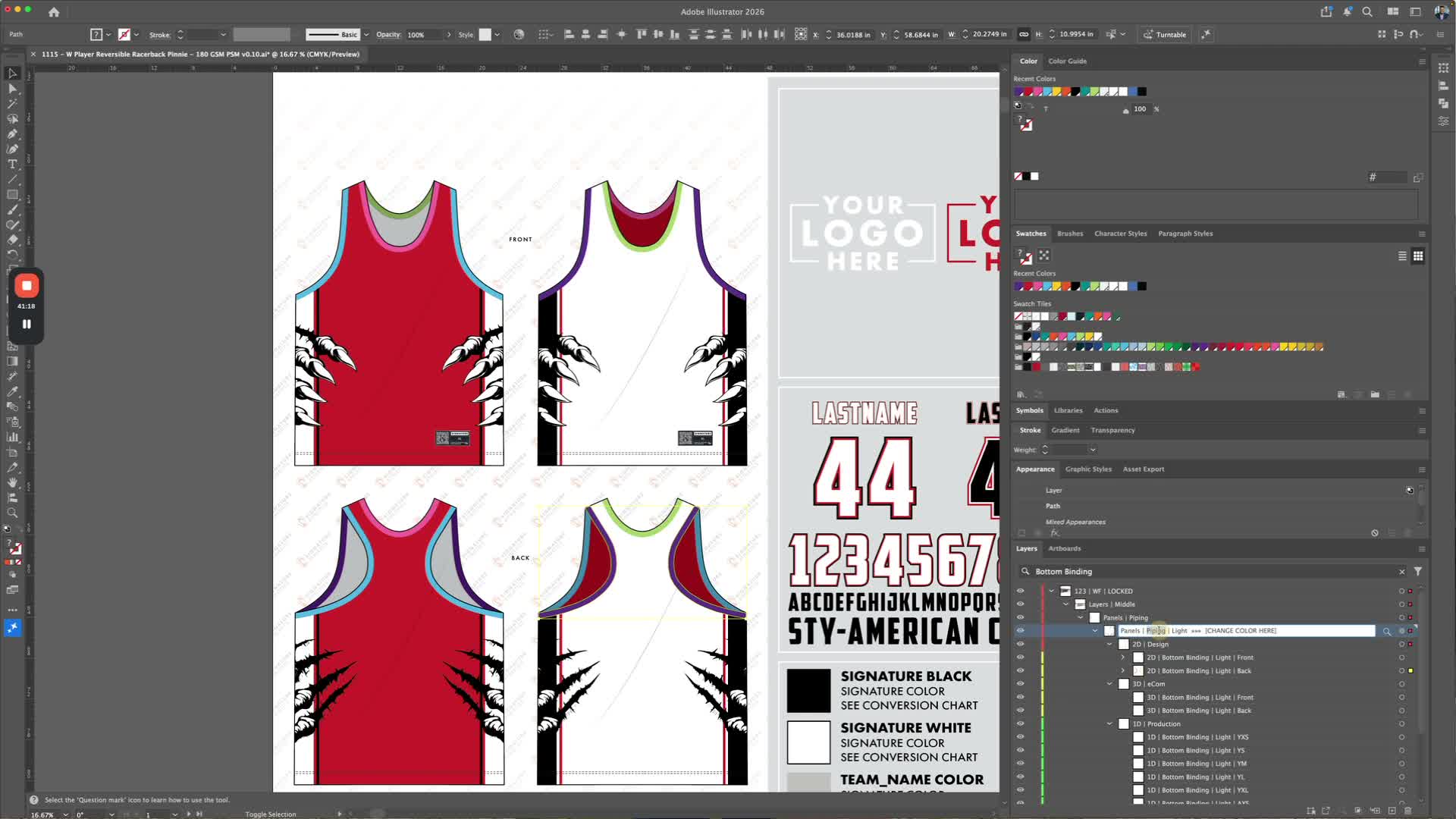

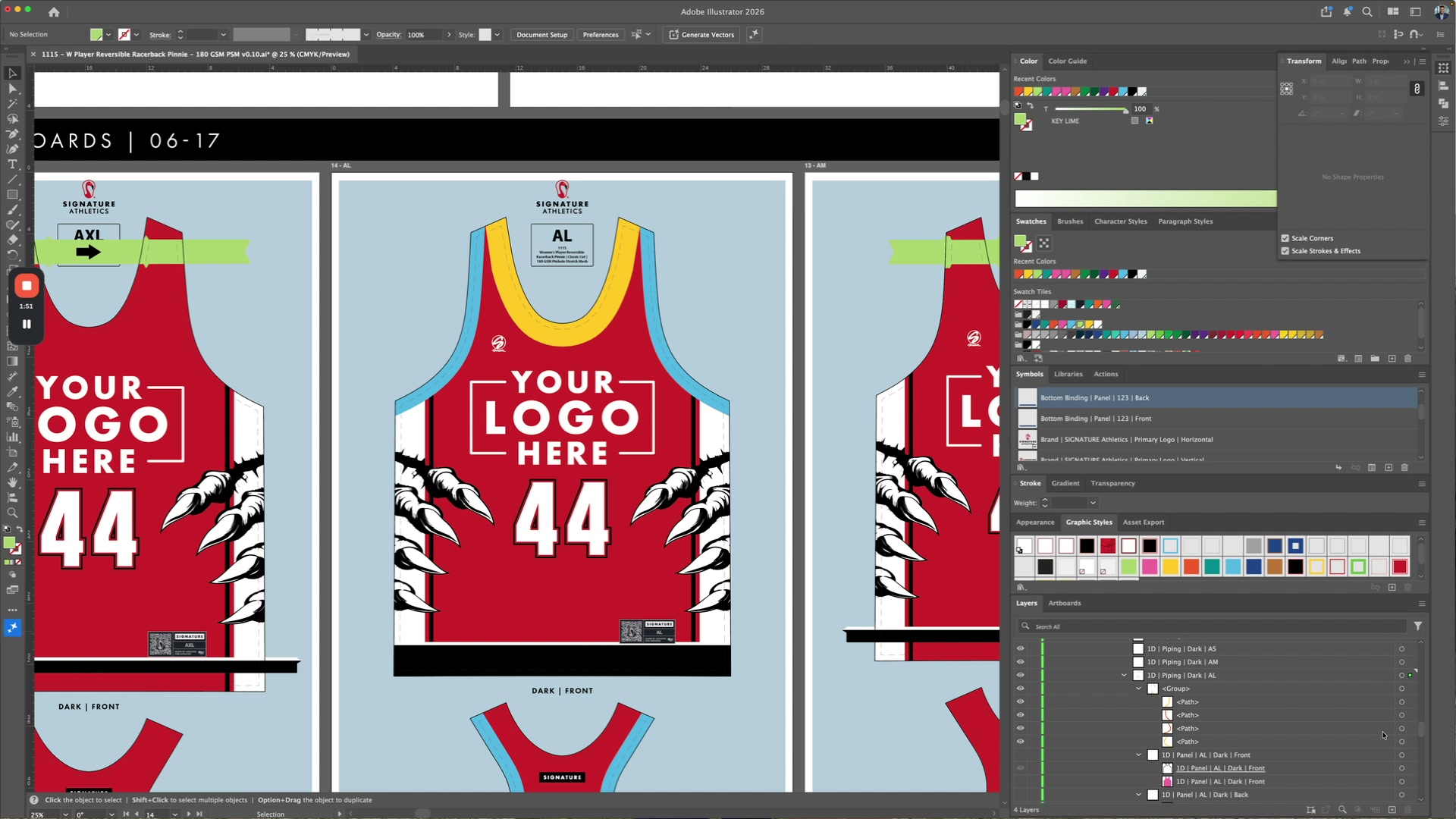

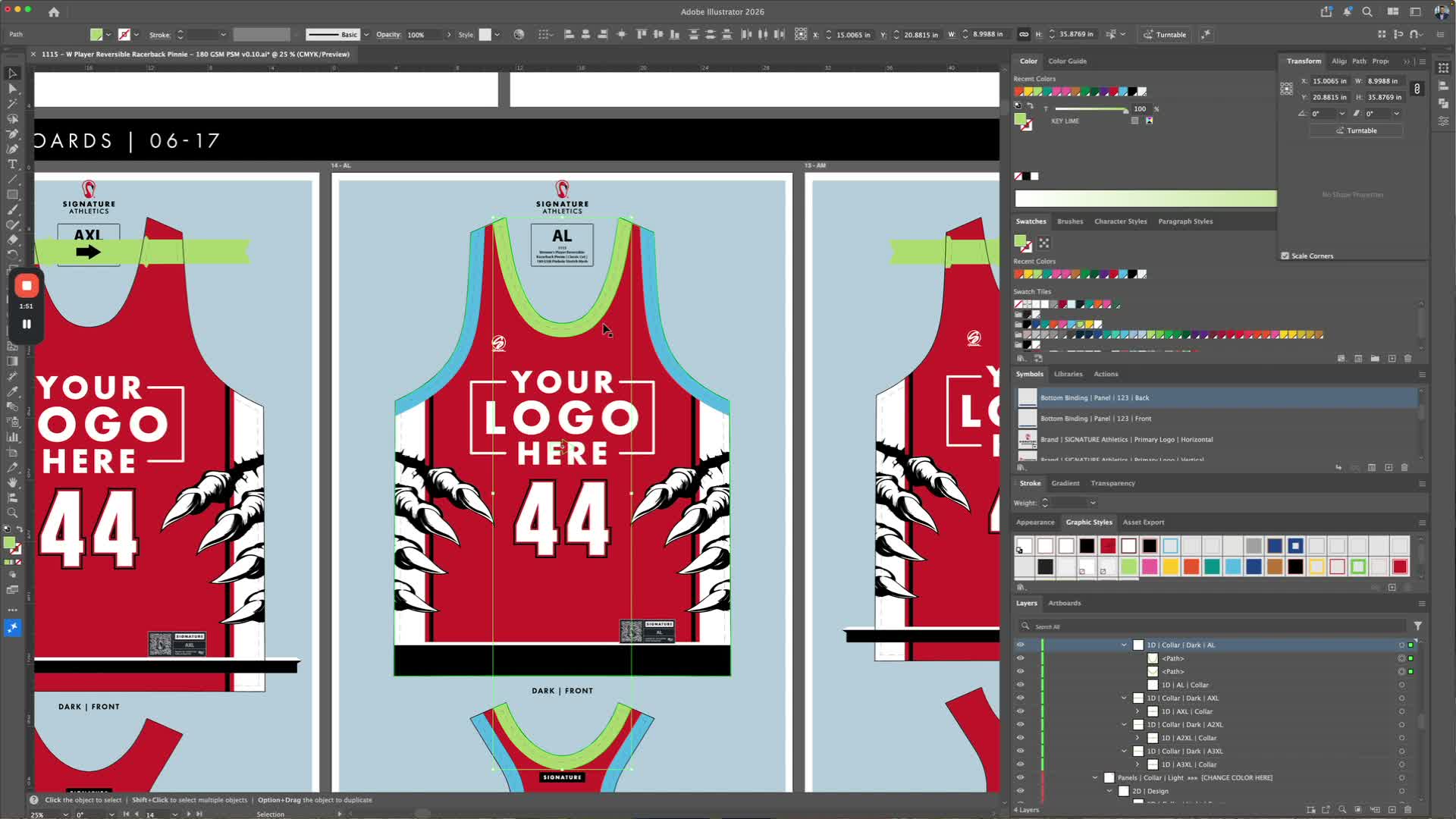

9. Duplicate and adjust bottom binding layers 49:44
- Turn on the bottom binding layer when needed.
- Copy the base artwork into the bottom binding area.
- Break apart or ungroup the binding so the front and back can be separated.
- Delete any extra pieces that do not belong in the final bottom binding structure.
- Keep the front and back binding aligned to the correct side.

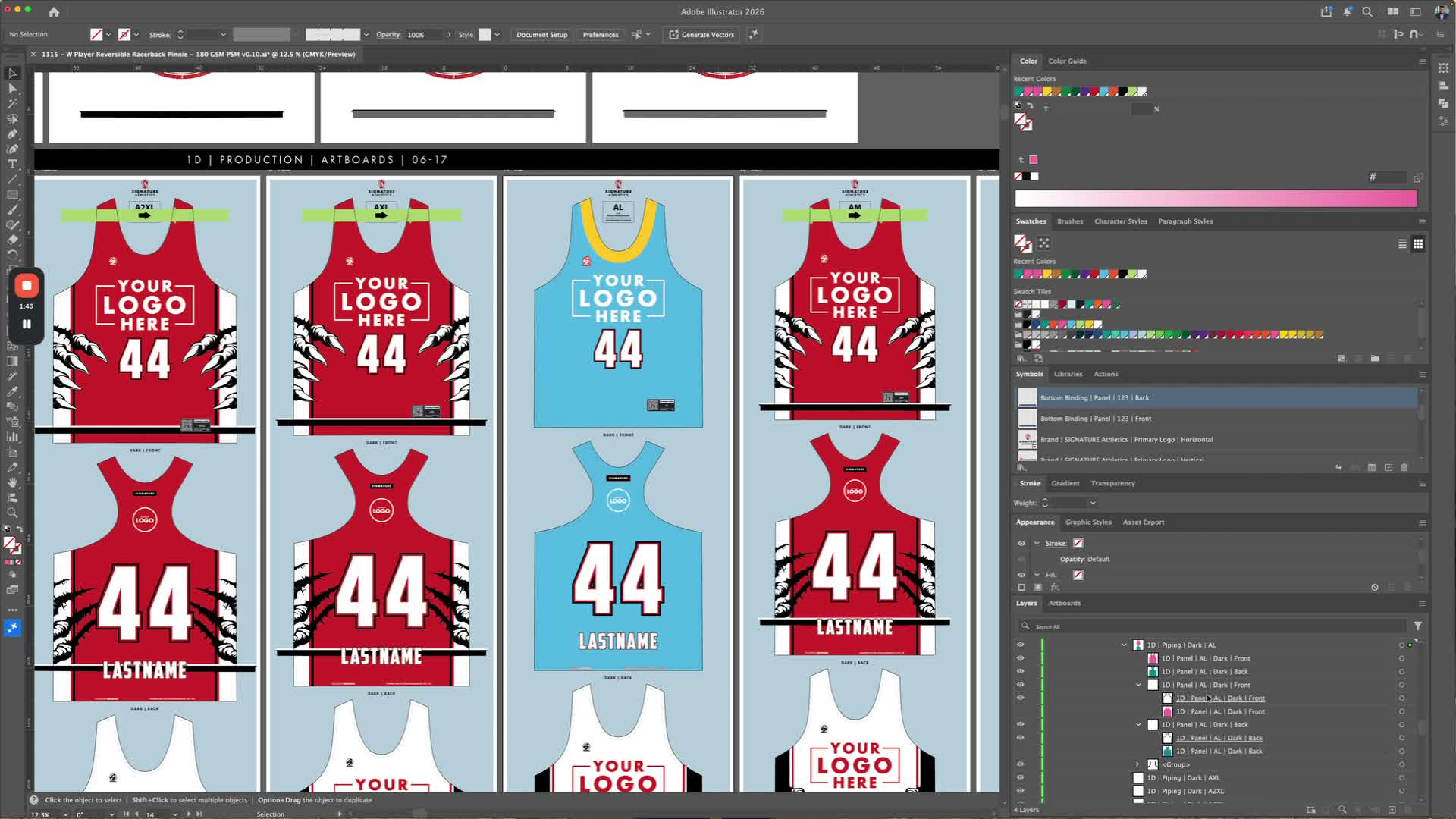

10. Keep 2D, 3D, and 1D elements separated by color and function 53:19
- Use the color coding consistently:
- red = 2D
- yellow = 3D
- green = 1D
- If a piece is meant to stay independent, keep it outside the grouped structure.

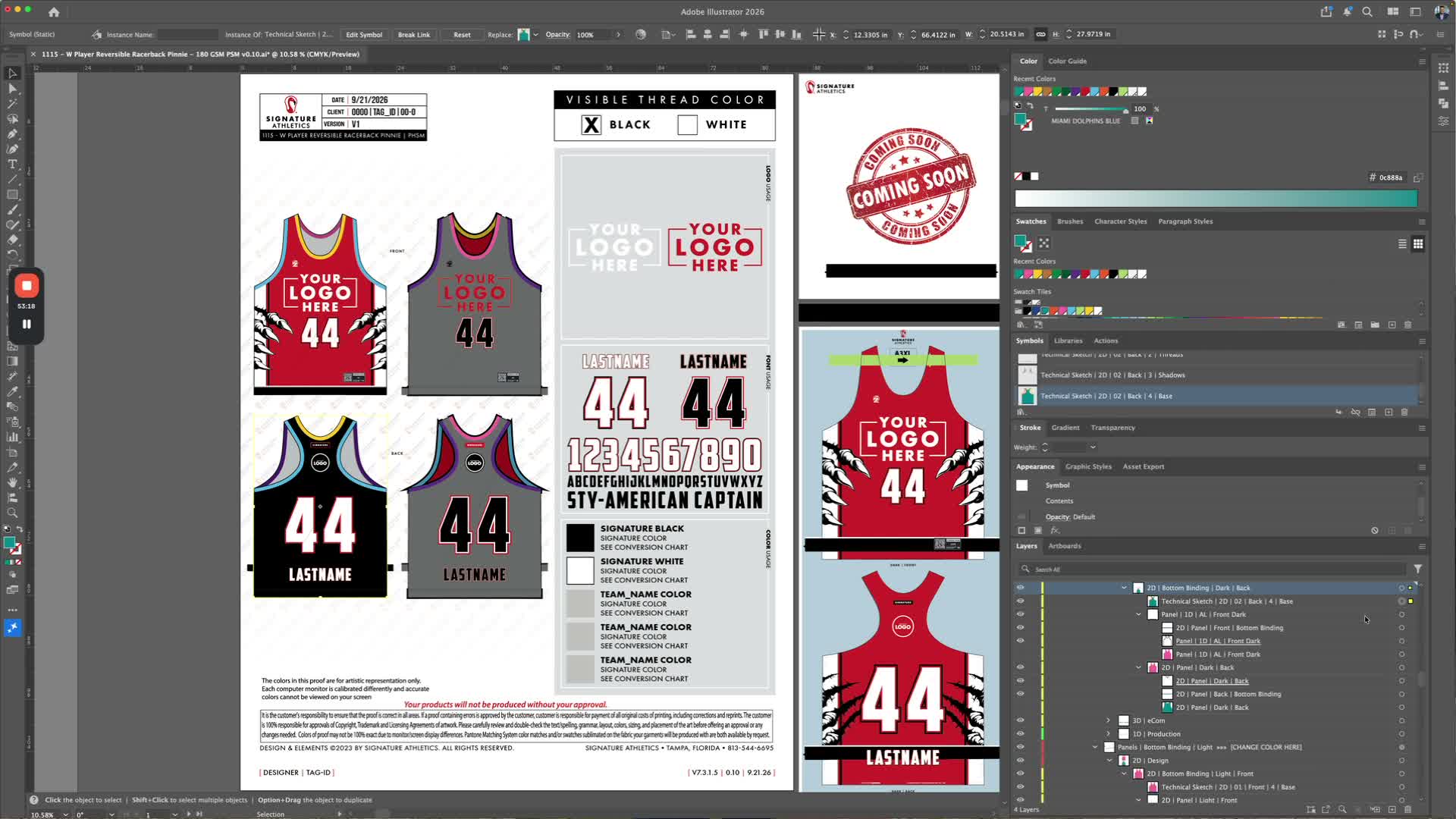

- Make sure the bottom binding sits above the technical sketch when required.
- Verify that the artwork still stacks correctly after breaking apart or regrouping.
11. Build the master structure so future duplicates are easier to manage 01:17:24
- Establish a standard format for all versions.
- Use visual cues such as different colors for front and back so the file is easy to read.
- Create a master structure that can be duplicated for future panels and colorways.
- Keep the naming consistent so the front/back and dark/light relationships are obvious.

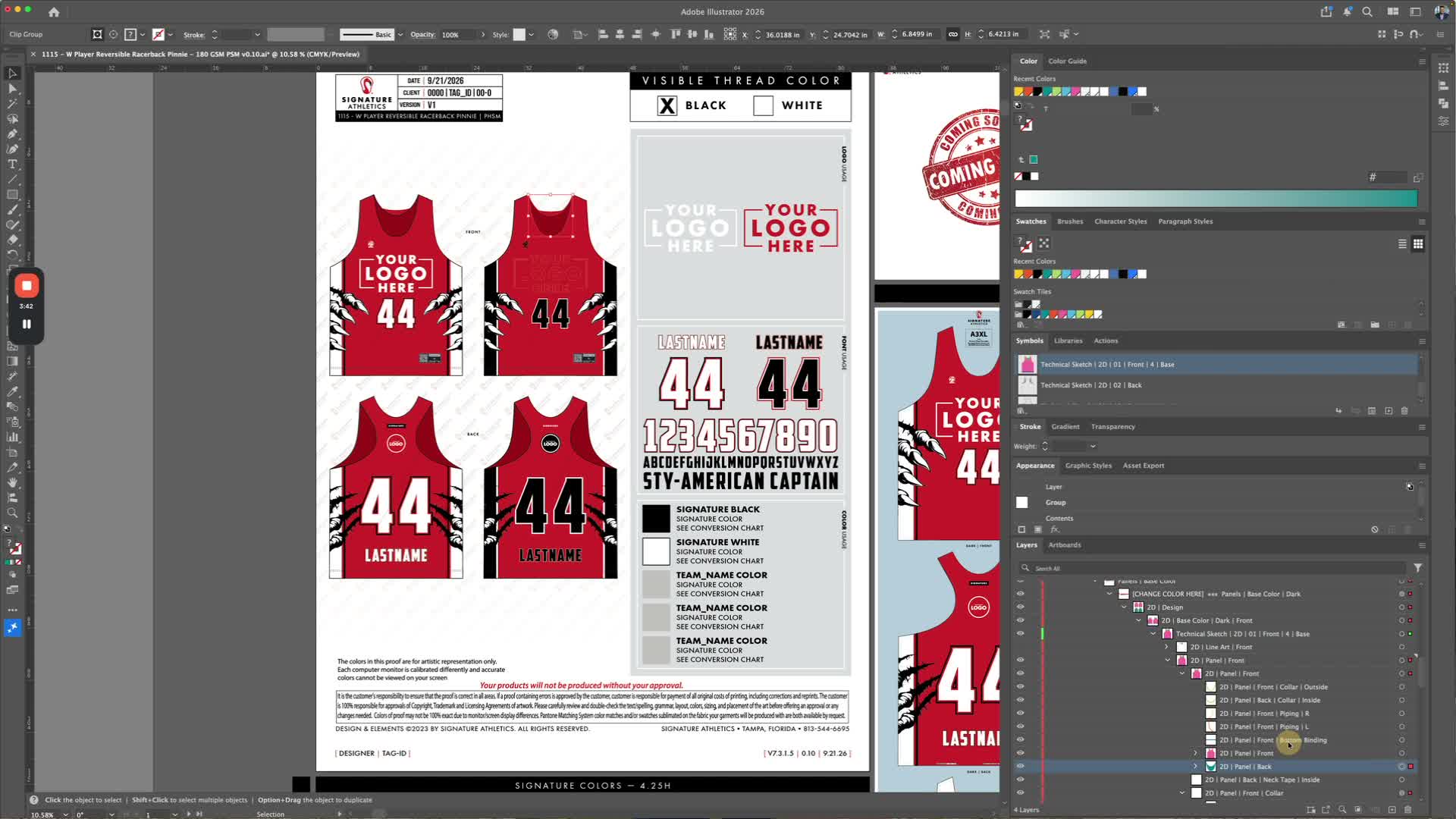

12. Rename paths and panels for QC and troubleshooting 01:21:51
- Rename paths so if they ungroup later, you can still identify the correct panel or pattern piece.
- Use clear labels for dark/light and front/back.
- This makes QC easier and helps prevent confusion when the file is duplicated or edited later.

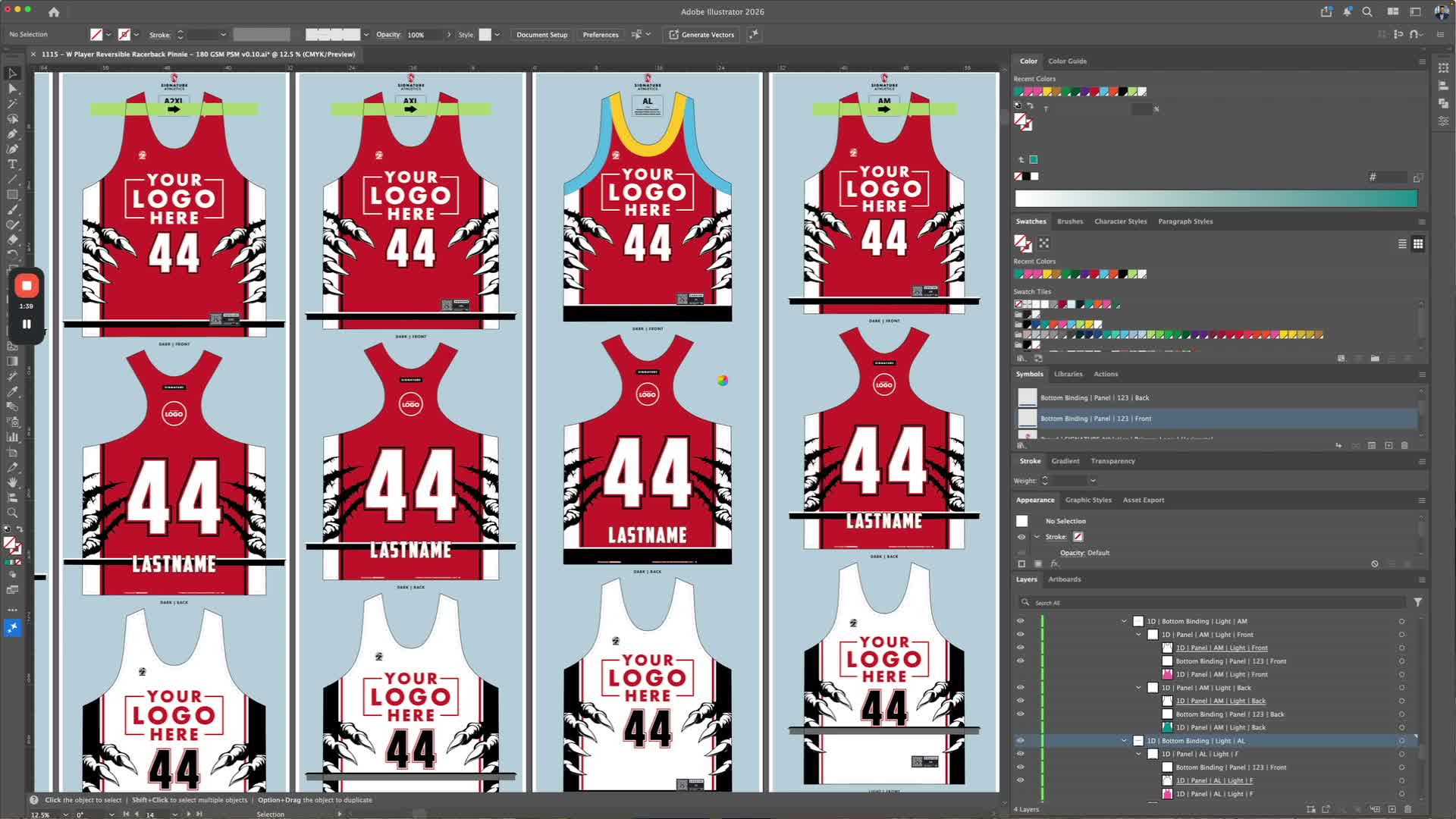

13. Duplicate the panel structure and verify front/back placement 01:33:03
- Copy the bottom binding and panel pieces into the next section.
- Place the front piece in the front space and the back piece in the back space.
- Remove any extra duplicates that are not needed.
- Use arrows or visual indicators to confirm front vs. back placement.

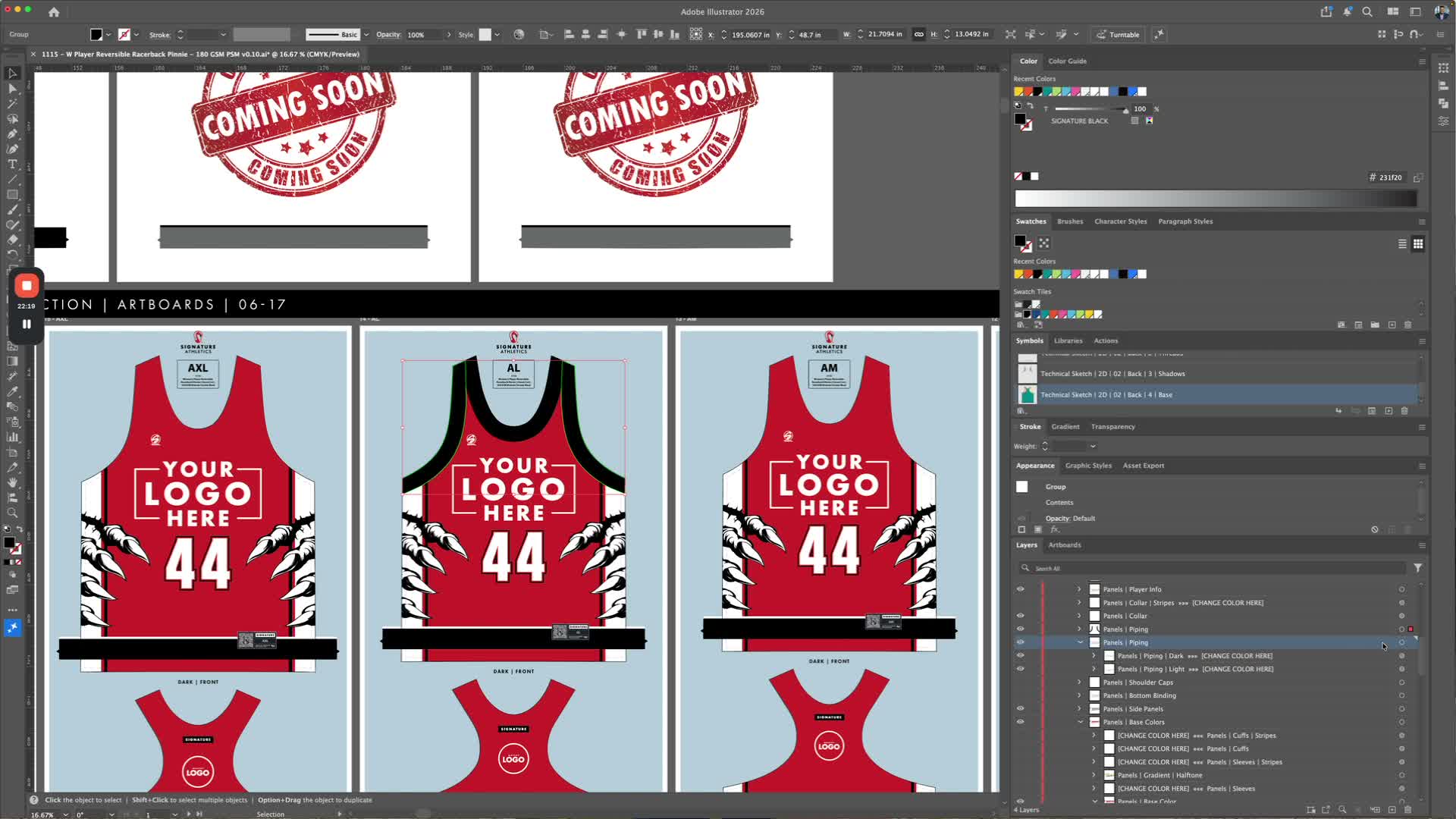

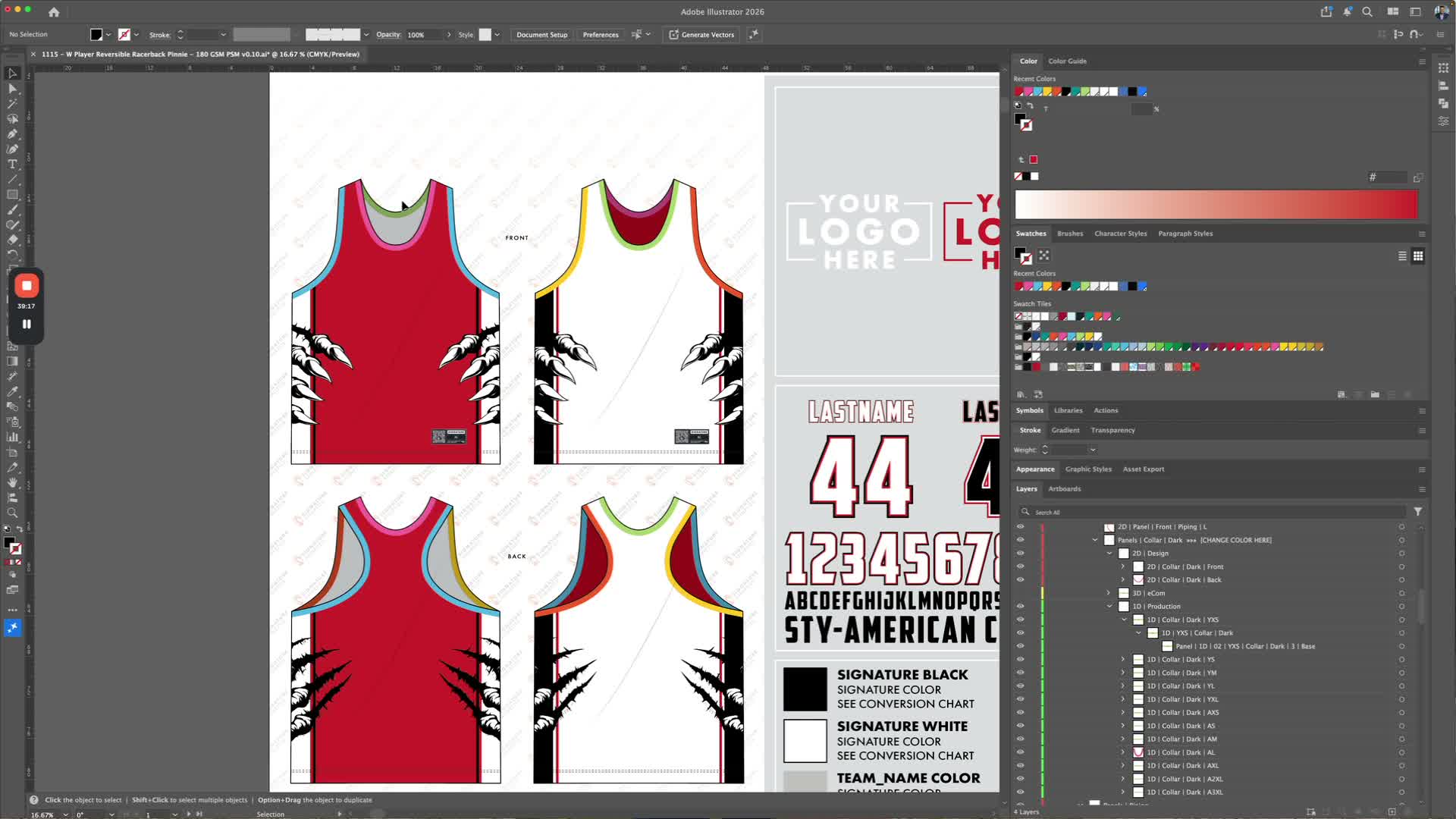

14. Adjust piping and collar construction for the final garment setup 01:39:16
- Rebuild the piping if the collar setup requires a different structure.
- Bring in the bottom binding or old-school bottom binding as needed.
- Clean up the collar area and add any missing layers required for the final look.
- Add a darkening layer if the light side needs more contrast.

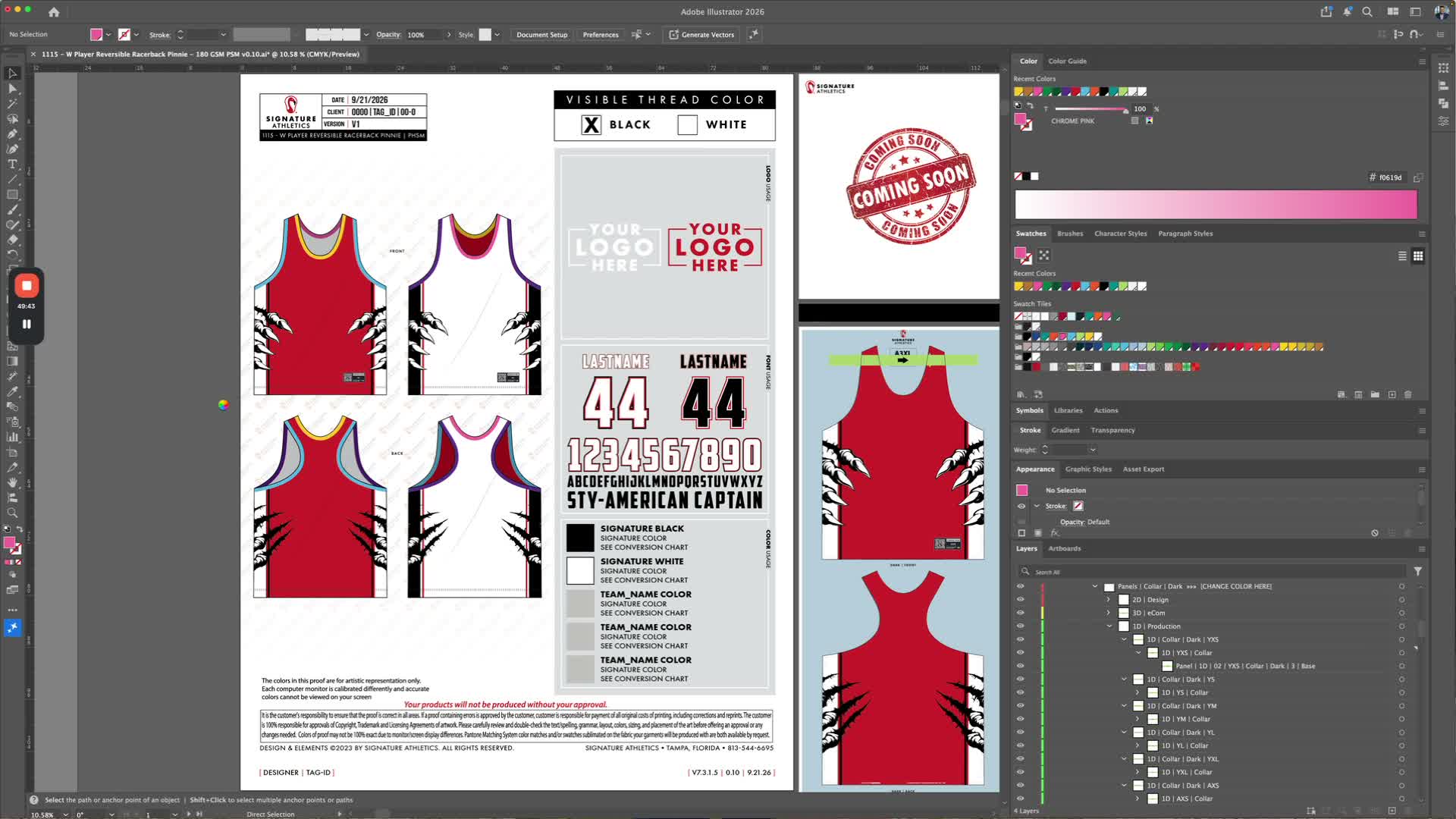

15. Build armhole/sleeve piping using graphic styles and anchor adjustments 01:43:04
- Group the sleeve or armhole pieces that need a piping treatment.
- Apply a graphic style to create the piping effect.
- Adjust the stroke thickness as needed for the garment type.
- Add anchor points and divide the shapes if needed to create the correct left/right color separation.

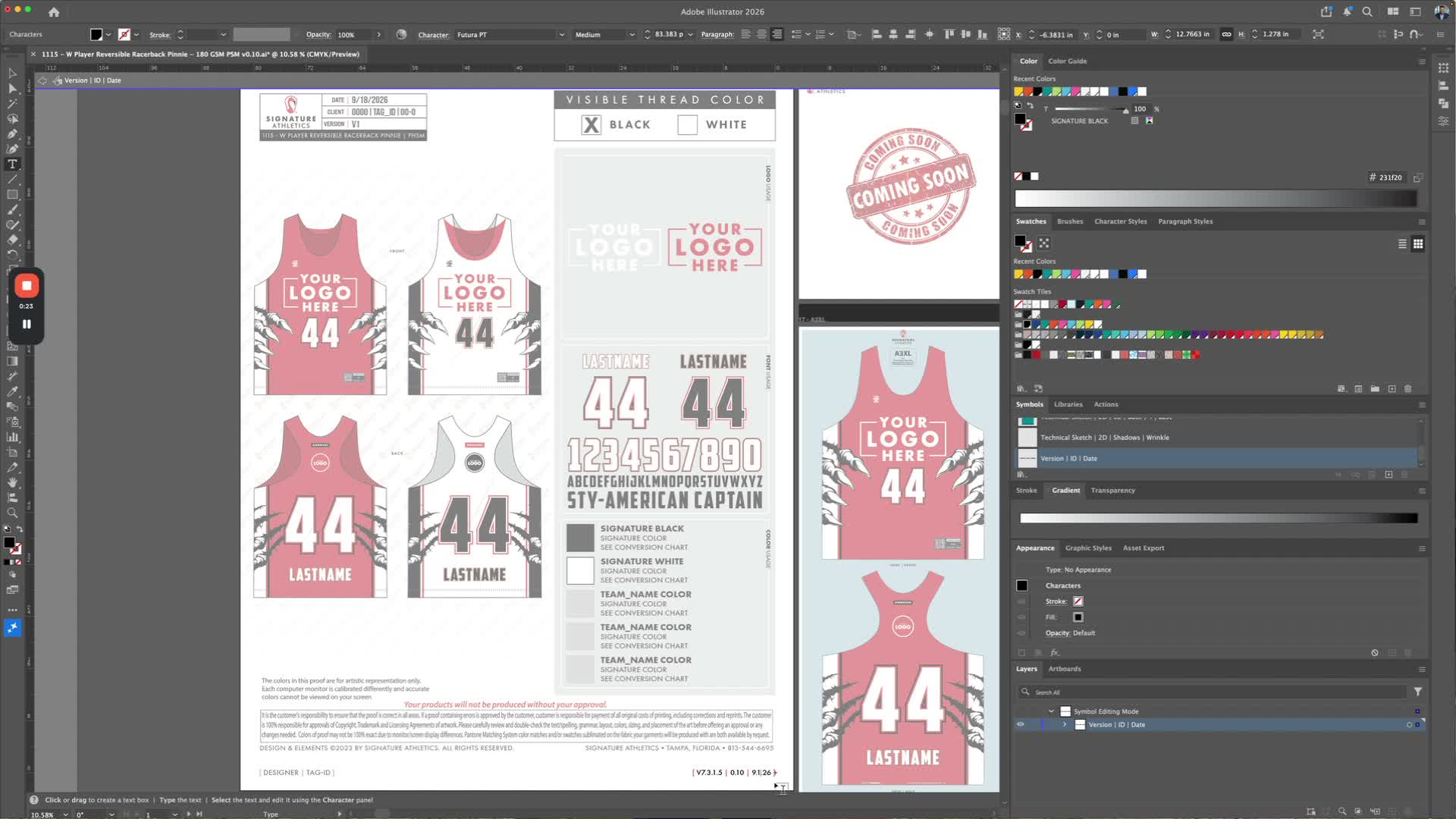

16. Finalize collar, sleeve, and branding placement 01:51:15
- Place the collar in the correct front/back position.
- Duplicate and separate the right and left pieces as needed.
- Move the collar under the light layer if that is the intended construction.
- Adjust branding/signature placement so it sits correctly on the final artwork.
- Lower the placement slightly if the design needs more spacing.

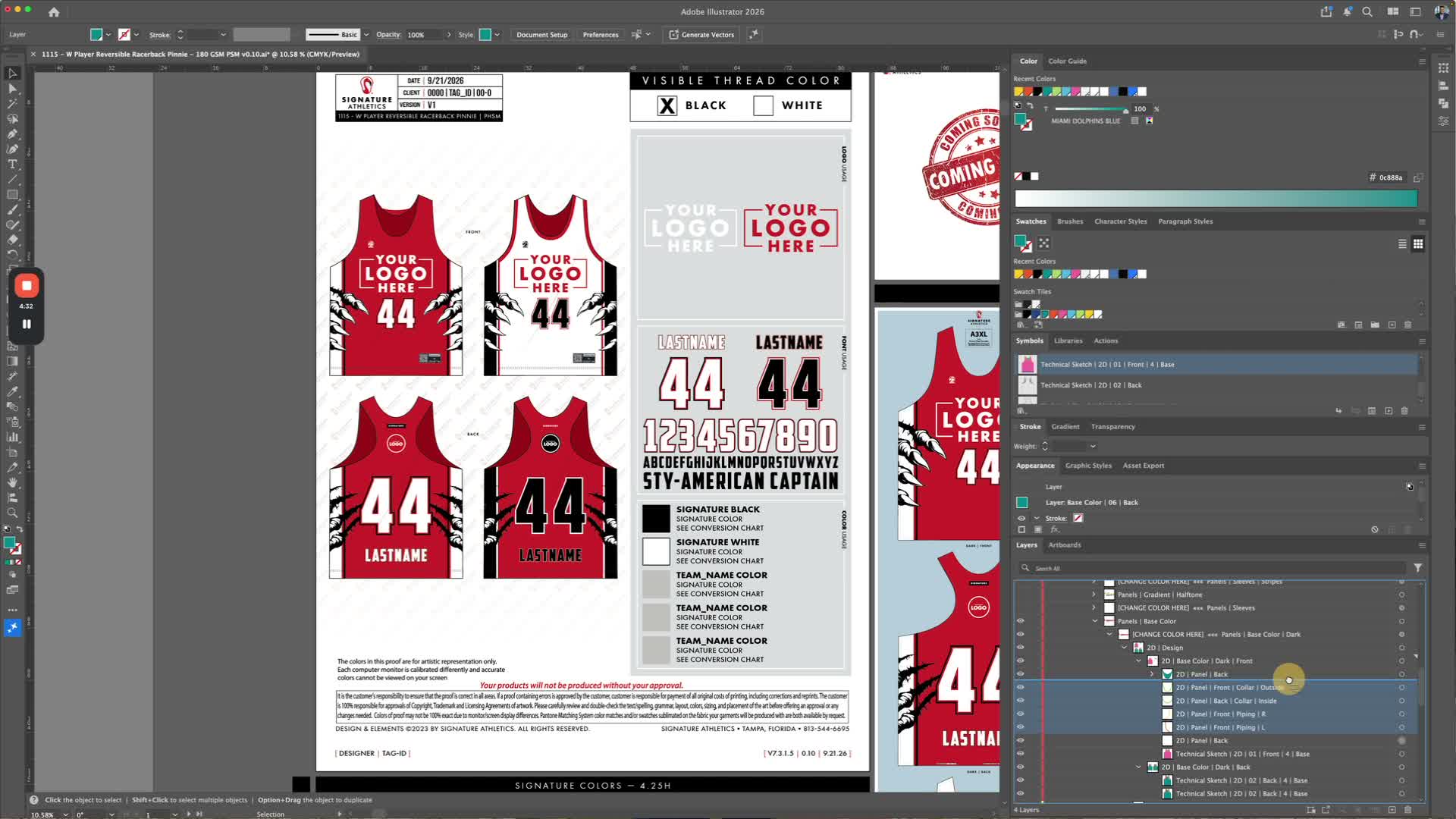

17. Complete the QC check and save the file 01:29:17
- Perform a QC check after the layer structure is complete.
- Confirm that dark/light labels, front/back placement, and piping/binding layers are correct.
- Verify that copied layers are hidden or removed.
- Save the file once the structure is stable and ready for the next step.
Cautionary Notes
- Do not duplicate layers without renaming them; duplicate names make QC and troubleshooting difficult.
- Be careful when ungrouping or breaking apart artwork, since it can separate paths unexpectedly.
- Keep front and back pieces distinct; mixing them can cause production errors.
- Avoid editing completed layers after they are renamed and hidden.
- Confirm the correct size/base file before building additional versions.
- If a layer is meant to stay independent, do not force it into a grouped structure.
- Recheck color coding after every major duplication step to ensure dark/light logic is still correct.
Tips for Efficiency
- Set up the layer structure first; duplication becomes much faster once the file is organized.
- Use consistent color coding for front/back and dark/light so you can identify pieces at a glance.
- Duplicate existing artwork instead of rebuilding shapes from scratch whenever possible.
- Hide completed layers to reduce mistakes and keep the workspace clean.
- Rename paths and panels early so QC is easier later.
- Work from the standard base size first, then adapt other sizes from that master structure.
- Use find-and-replace for repeated label changes like dark to light to save time.
